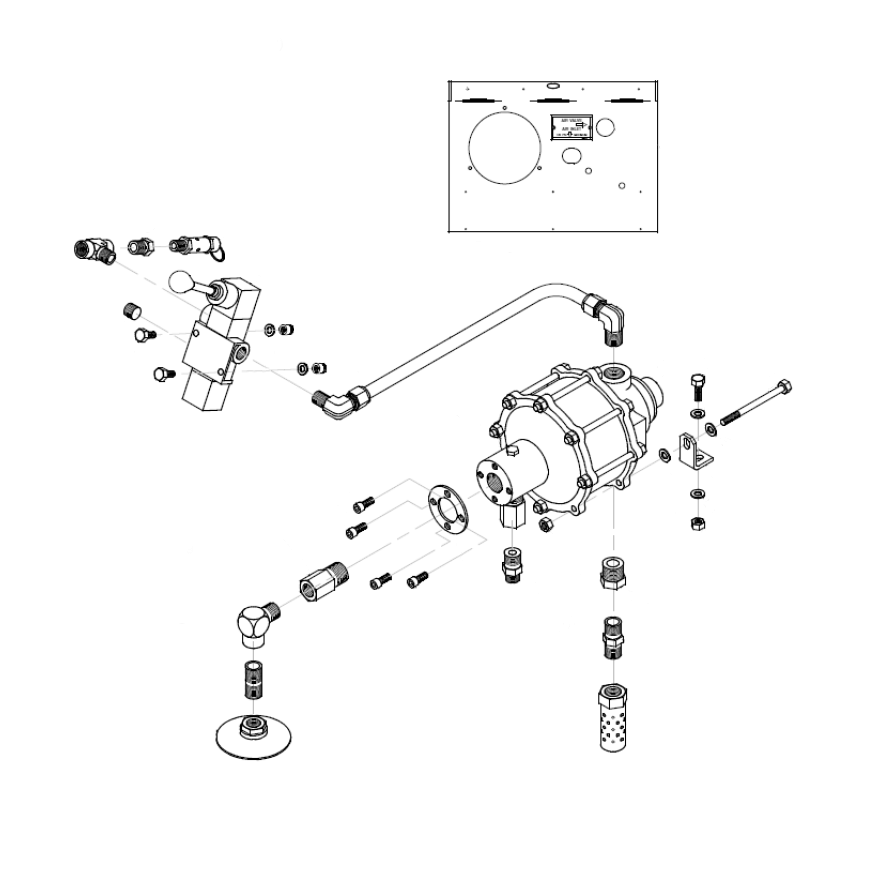

Parts List
- 86387: Air Pump
- 86369: Pump Gasket
- 86368: Pump Bracket
- 421-005: Air Valve, 3/8 NPT
- 425-001: Air Relief Valve, 1/4 NPT
- 472-001: Muffler, 1/2 NPT
- 481-002: Oil Screen, 1/2 NPT
- 722-013: Elbow, 1/2 Tube x 1/2 NPT
- 712-003: Elbow, Street, 1/2 NPT
- 713-005: Tee, Branch, 3/8 NPT
- 717-007: Plug, Hex Soc, 3/8 NPT
- 711-013: Nipple, Close, 1/2 NPT
- 711-001: Nipple, Hex Close, 1/2 NPT
- 711-022: Reducer, 1/2 MPT x 3/8 MPT
- 321-083: HHCS, 5/16-18 x 1" LG
- 714-009: Reducer, 3/8 MPT x 1/4 FPT
- 86397: Placard, Air
- 397-005: Self Tap Screw, #4 x 3/16 (2)
- 321-029: HHCS, 5/16-18 x 3/4 LG (2)
- 363-002: SHCS, Locking, 5/16-18 x 3/4 (4)
- 355-004: Hex Locknut, 5/16-18
- 359-001: Allen Nut, 5/16-18 (2)
- 732-001: Tube, 1/2 OD x .049 W x 21"
- 714-006: Reducer, 3/4 MPT x 1/2 FPT
- 722-012: Elbow, 1/2 Tube x 3/8 NPT
- 362-002: Washer, Flat 5/16 SAE (4)
- 321-232: HHCS, 5/16-18 x 4 1/2 LG
