Details

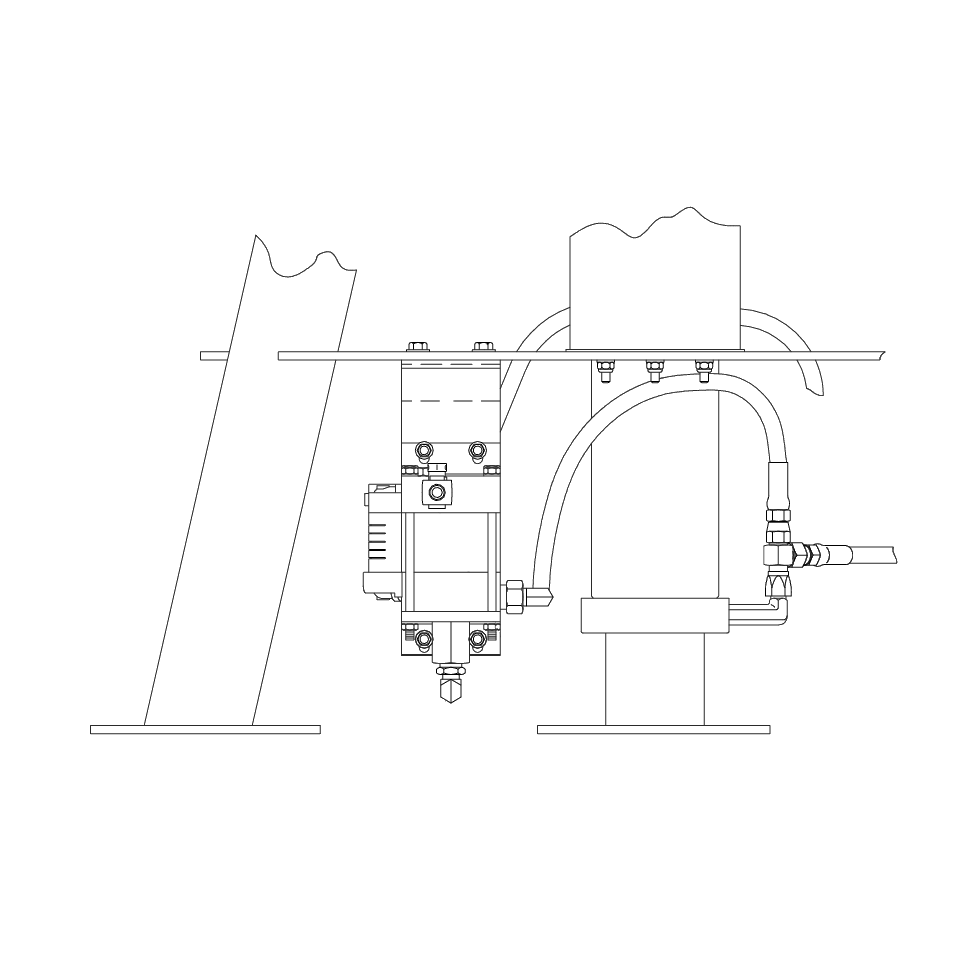

- Intended replacement on select Tronair aircraft jacks
Parts List
- G-1100-106512: Bolt, Hex Head, Grade 5, 5/16-24 x 1-1/4" long (2)
- G-1202-1065: Stopnut, 5/16-24 Elastic (2)
- G-1250-1060N: Flatwasher, 5/16 Narrow (4)
- G-1100-105510: Bolt, Hex Head, Grade 5, 1/4-28 x 1" long (4)
- G-1202-1055: Stopnut, 1/4-28 Elastic (4)
- G-1250-1050N: Flatwasher, 1/4 Narrow (8)
- H-1174 (83586-DP): Pump, Air
- J-3415-01: Bracket, Air Pump
- N-2210-04-S: Reducer, Pipe Thread
- N-2410-01: Elbow, 90° Male
- H-1173: Valve, Plug
- H-1536-19: Caplug, Tapered
- N-2005-08-S: Elbow, Male
- TF-1043-03*23.0: Assembly, Hose, 23" long
- N-2016-05-S: Tee, Run Swivel Nut
- TF-1047-01*21.0: Hose, Gray, 1/4" diameter x 21" long (2)
- N-2409-01: Elbow, 45° Male
- N-2208-01-S: Tee, Male Branch
- N-2412-04: Connector, Straight Male, 1/4 x 1/8
