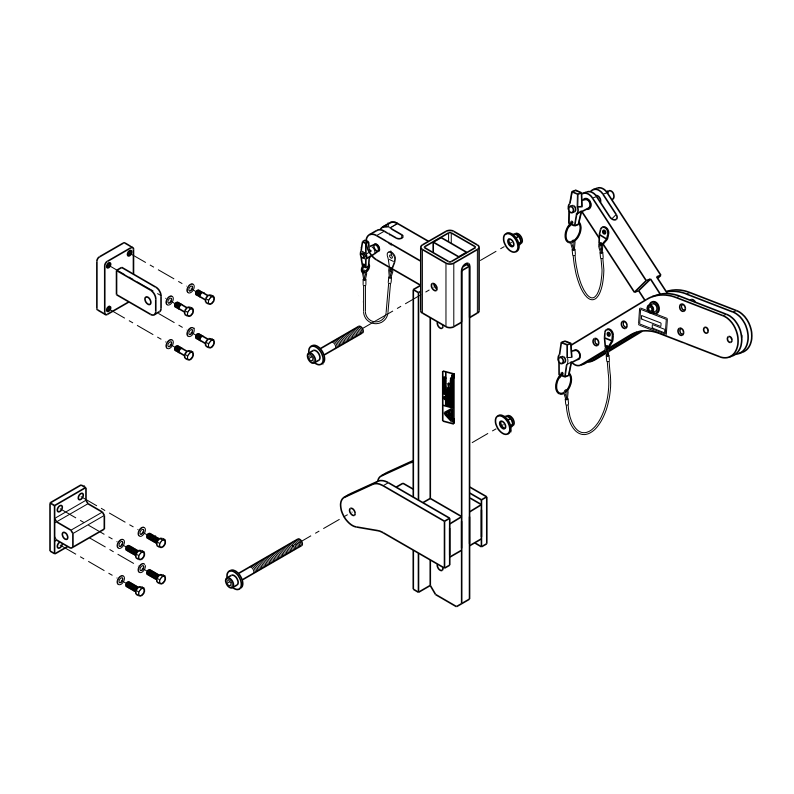

Parts List
- Z-2831: Weldment, Engine Mount
- G-1455: Bolt, 7/16-20 Modified (4)
- G-1255-08: Washer, 7/16" diameter (8)
- G-1351-04: Rivet, 1/8 Open-End Steel (3)
- H-1026*07.0: Assembly, Lanyard (3)
- G-1310-0831: Pin, Ball Lok-T, ½" diameter x 3.1" long
- J-3738: Bar, Upper Mount
- Z-5888: Machining, Rear Bracket
- Z-6118: Weldment, Forward Mount
- G-1202-1095: Stopnut, 1/2-20 Elastic (2)
- G-1250-1090N: Flatwasher, 1/2 Narrow (4)
- G-1151-109754: Screw, Hex Socket Head Cap, ½ - 20 x 5.5" long
- Z-4751: Weldment, Lower Mount
- G-1112-108112: Bolt, Hex Head, S.S. Grade 5, 7/16-20 x 1-1/4" long (4)
- G-1310-1015: Pin, 5/8 x 1.5" long, Ball Lok-T (2)
- G-1151-109740: Screw, Hex Socket Head Cap, ½ - 20 x 4.0" long
