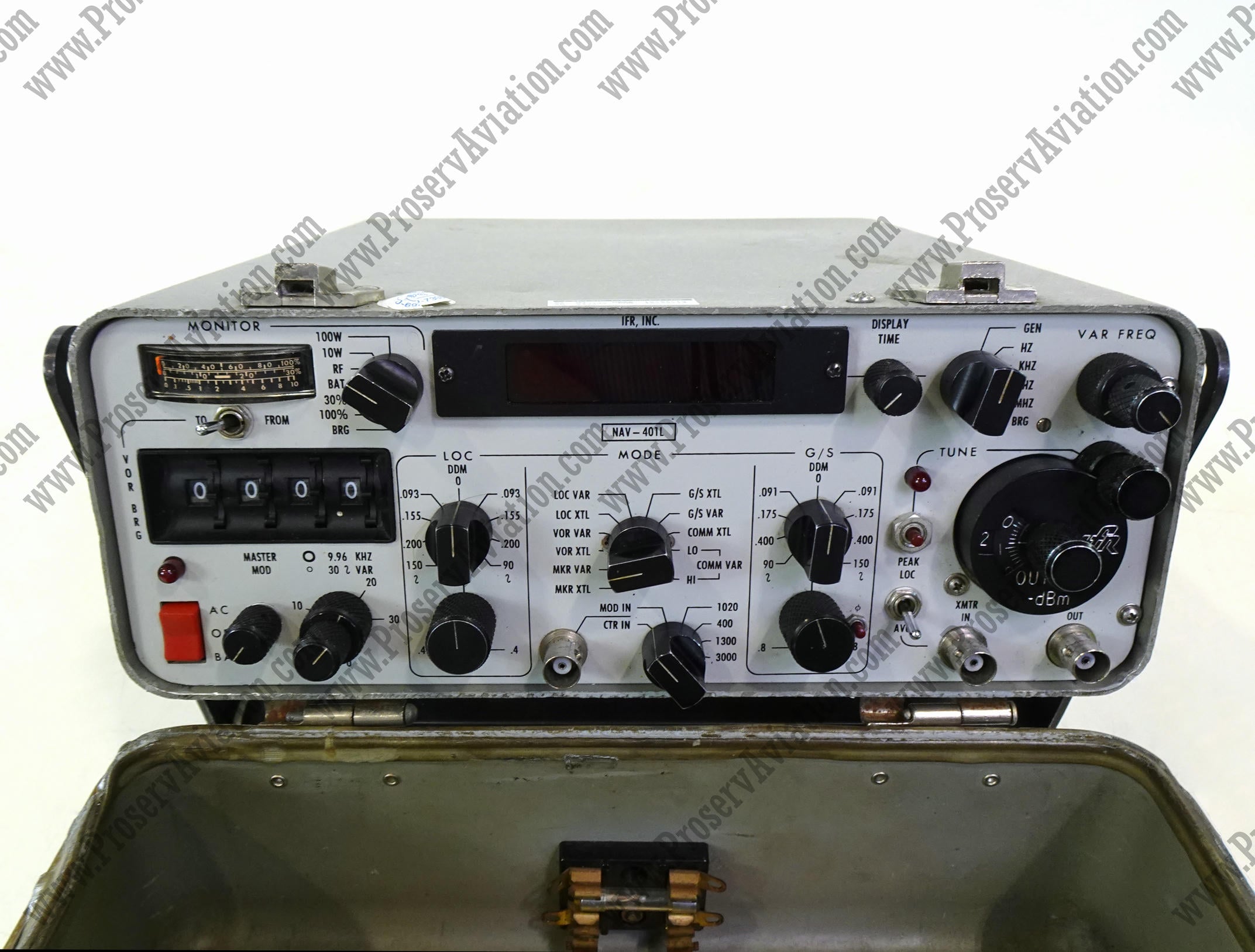

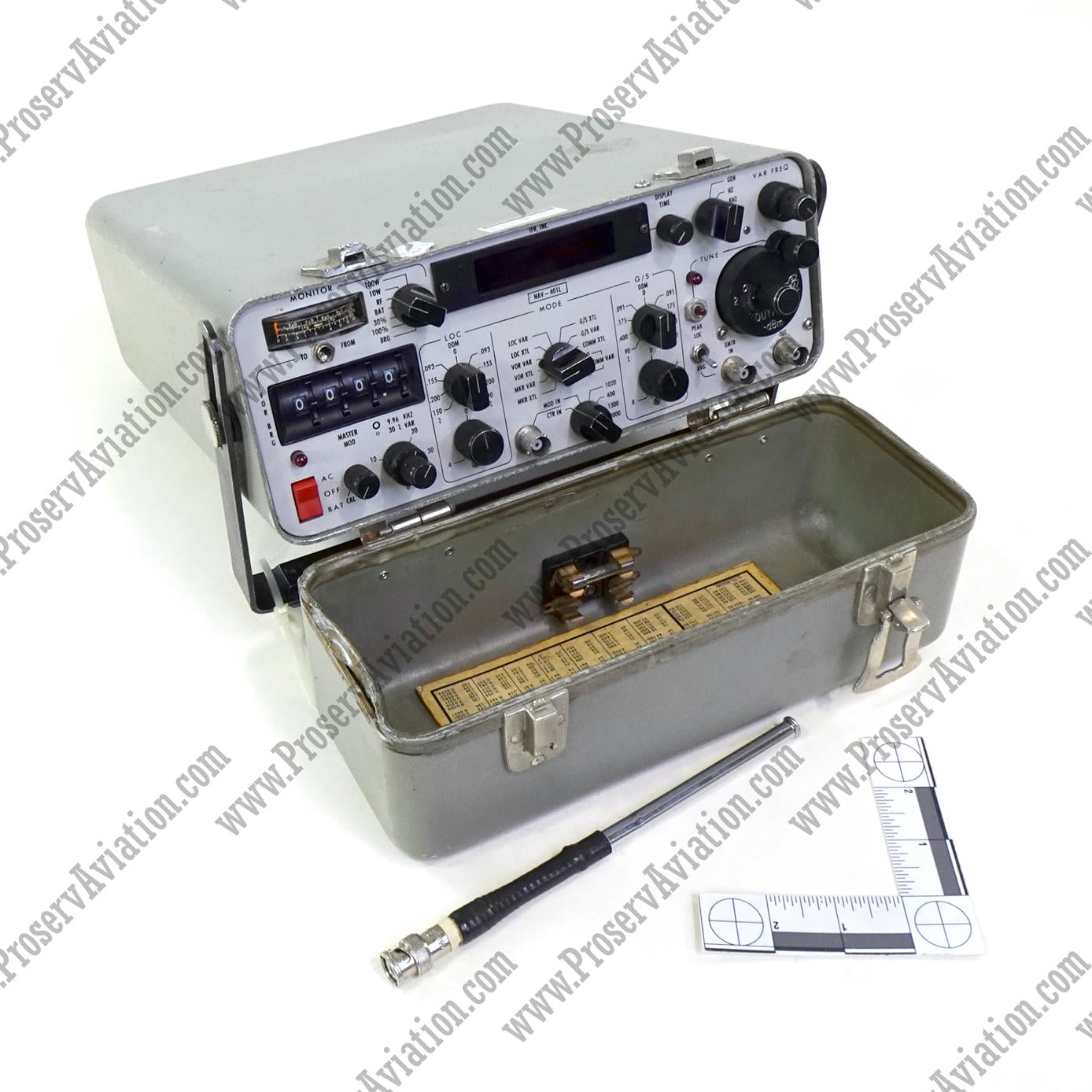

NAV401L

Details

• VOR bearing selectable in 0.1 degree steps, accuracy ±0.1 degree
• Signal generator for MKR, VOR, LOC, G/S, and COMM systems with both XTAL and VAR frequency modes
• Built-in modulation monitors, 0-30% and 0-100%
• Built-in 90 degree bearing monitor of VOR output
• RF power meter for COMM XMTR power 0-10 W and 0-100 W
• Simultaneous LOC-G/S output
• Built-in battery and charger supply
• Built-in counter for display of generator frequency, COMM XMTR frequency, or O dBm external frequencies from 1 MHz to at least 300 MHz
